C series Multi parameter monitor

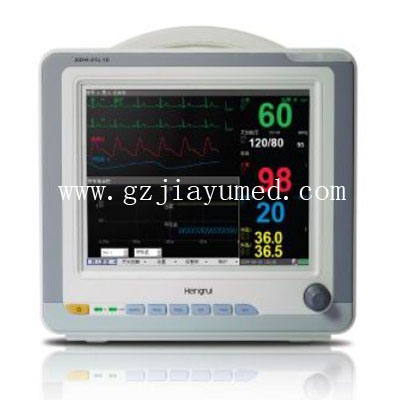

JY-C3 Multi parameter monitor
Specification of Patient Monitor
Features:
- Ergonomic design, portable, convenient for use
- 8.4、 10、4 、 12.1、 15 " TFT display, configurable up to 8 waveforms, enables maximum data visibility for the most critical parameters
- Unique digital SPO2 technology can work accurate during motion and low perfusion
- Anti AC & high-frequency electrosurgical ＆ defibrillator’s interference
- Rich screen layout, standard, large font, trend graph, OxyCRG, ECG full lead and others
- Strong data storage: 720 hours trends, 10000 group NIBP, 1024 alarms events
- ST analysis, arrhythmia analysis, pacemaker analysis, drug analysis and calculation
- Audible & visual alarm available, adjustable
- Patient information management function
- Powerful software function to support use in NICU, ICU, OR, CCU or normal patient room
- Flexible data storage & transfer/software upgrading based on USB
- Wired/wireless networking with central monitoring system, up to 64 beds in one group
- Built-in 3 trace thermal recorder for printing real-time and historical data
- Multi-language i.e. English, Spanish, French, Italian, Turkish, German, Russian etc.
- Super long life rechargeable dual lead-acid battery (optional) upto 4 hours of working time
- Suitable for adult, pediatrics and neonate patients
Standard configuration:
- ECG, NIBP, SPO2, TEMP, RESP, PR
Specification:
|
|
|||||
|
|
|||||
|
ECG
|
1
|
Lead mode:I II III,AVR.VL.AVF.V
|
|||
|
2
|
GAIN:*0.25.*0.5.*1.*2(mm/mV)
|
||||
|
3
|
Hear rate:
|
15-300 bpm(adult)
|
|||
|
15-350bpm(pediatric)
|
|||||
|
Resolution:1bpm
|
|||||
|
Accuracy:+-1%
|
|||||
|
4
|
Bandwidth: Diagnostic:0.05-130Hz
|
||||
|
Monitor:0.5-40Hz
|
|||||
|
Surgery:1-20Hz
|
|||||
|
5
|
Sweep speed:12.5mms,25mm/s,50mm/s
|
||||
|
6
|
Pacemaker rejection:Yes
|
||||
|
7
|
ST measurement Range:-2.0+-2.0mv
|
||||
|
Accuracy:+-0.02mv or +-10% which is greater
|
|||||
|
Spo2
|
1
|
Measure range:0-100%
|
|||
|
2
|
Resolution:1%
|
||||
|
3
|
Accuracy:+-2%
|
||||
|
Resolution:1bpm
|
|||||
|
Accuracy:+-3bpm
|
|||||
|
NIBP
|
1
|
Work mode: manual,automatic,continuous
|
|||
|
2
|
Unit: mmHg,Kpa
|
||||
|
3
|
Measure range:
|
adult: SYS:40-280mmhg
|
|||
|
DIA:10-220mmhg
|
|||||
|
MEAN:20-240mmhg
|
|||||
|
Pediatric:SYS:40-220mmhg
|
|||||
|
DIA:10-160mmhg
|
|||||
|
MEAN:20-170mmhg
|
|||||
|
Neonatal:SYS:40-135mmhg
|
|||||
|
DIA:10-100mmhg
|
|||||
|
MEAN:20-100mmhg
|
|||||
|
4
|
Resolution:1mmhg
|
||||
|
5
|
Accuracy: max mean error:+-5mmhg; max standard deviation:8mmhg
|
||||
|
6
|
Overpressure protection:0-300mmhg
|
||||
|
7
|
Degree of protection:BF.CF
|
||||
|
RESP
|
1
|
Measure range:
|
Adult:0-120rpm
|
||
|
pediatric.neonatal 0-150rpm
|
|||||
|
2
|
Resolution:1 rpm
|
||||
|
3
|
Accuracy:+-2%
|
||||
|
TEMP
|
1
|
Channels:2
|
|||
|
2
|
Measure range:0-50°c
|
||||
|
3
|
Resolution:0.1°c
|
||||
|
4
|
Accuracy:+-0.1°c(25-45c°)
|
||||
|
IPM
(optional)
|
1
|
Channels:2
|
|||
|
2
|
Measure range:-50-360mmhg
|
||||
|
3
|
ccuracy:+-2%or +-1mmhg which is greater
|
||||
|
Co2
(optional)
|
1
|
Measure range:0%-13%
|
|||
|
2
|
Resolution:1mmhg
|
||||
|
3
|
Accuracy:+-12mmhg@<5.0%co2 (at ATPS)
|
||||
|
4
|
Resp:3-15rpm
|
||||
|
Ioc(optional)
|
1
|
EEG sensitivity:+-475uV
|
|||
|
2
|
CMRR:>100DB
|
||||
|
3
|
Input impedance: >50Mohm
|
||||
|
4
|
IoC: 0-100
|
||||
|
5
|
ESR: 0-100%
|
||||
|
6
|
EMG: 0-100
|
||||
|
Recorder optinal
|
1
|
Width:48mm
|
|||
|
2
|
Speed:25-50mm
|
||||
|
3
|
Channels:2
|
||||
